Wurth Elektronik 10-Way IDC Connector Socket for Cable Mount, 2-Row
Tehnička dokumentacija
Tehnički podaci
Brand
Wurth ElektronikNumber Of Contacts
10
Number Of Rows
2
Gender
Female
Pitch
2.54mm
Mounting Type
Cable Mount
Body Orientation
Straight
Termination Method
IDC
Current Rating
1A
Contact Plating
Gold
Series
WR-BHD
Minimum Operating Temperature
-40.0°C
Maximum Operating Temperature
125.0°C
Voltage Rating
250.0 V ac
Contact Material
Copper
Housing Material
PBT
Zemlja podrijetla
Taiwan, Province Of China
Detalji o proizvodu

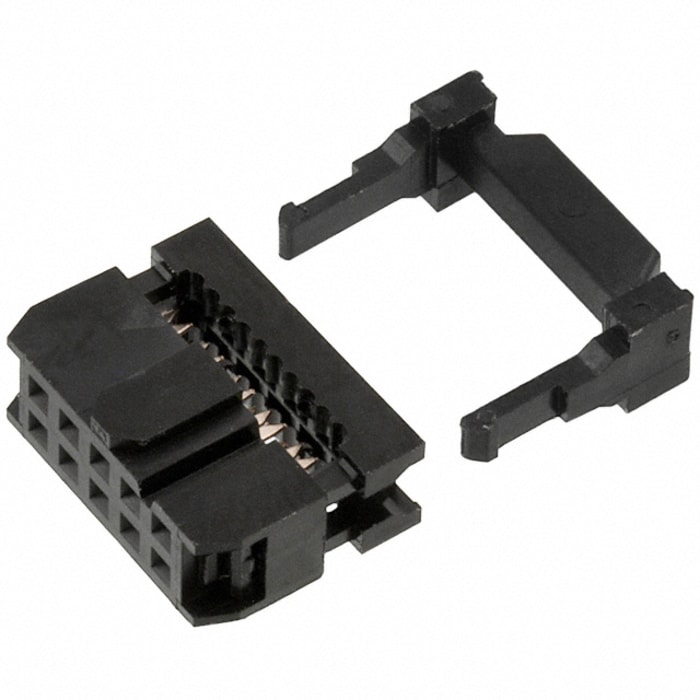

WR-BHD 2.54mm IDC Ribbon Cable Socket Connectors with Strain Relief
WR-BHD cable mount IDC ribbon cable receptacle connectors with a 2.54mm pitch. These wire to board IDC 2.54mm ribbon cable receptacle connectors have a black UL04-V0 PBT insulator, gold plated copper alloy female socket contacts, a polarizing key and are supplied with additional strain reliefs.
2.54mm Wurth WR-BHD Range
A range of Wurth WR-BHD Box Headers and IDC Sockets.
Zamisliti. Stvoriti. Surađivati
PRIDRUŽITE SE BESPLATNO
Bez skrivenih naknada!
- Preuzmite i koristite naš softver DesignSpark za svoje PCB i 3D mehaničke dizajne
- Pregledajte i doprinesite sadržaju internet stranice i foruma
- Preuzmite 3D modele, sheme i otiske s više od milijun proizvoda
Informacije o stanju skladišta trenutno nisu dostupne.
Provjerite ponovno kasnije.
KM 1,514
Each (In a Pack of 5) (bez PDV-a)
KM 1,771
Each (In a Pack of 5) (s PDV-om)
5
KM 1,514
Each (In a Pack of 5) (bez PDV-a)
KM 1,771
Each (In a Pack of 5) (s PDV-om)
5
Kupujte na veliko
| količina | Jedinična cijena | Po pakovanje |
|---|---|---|
| 5 - 45 | KM 1,514 | KM 7,57 |
| 50 - 245 | KM 1,103 | KM 5,52 |
| 250 - 495 | KM 0,952 | KM 4,76 |
| 500+ | KM 0,887 | KM 4,43 |
Zamisliti. Stvoriti. Surađivati
PRIDRUŽITE SE BESPLATNO
Bez skrivenih naknada!
- Preuzmite i koristite naš softver DesignSpark za svoje PCB i 3D mehaničke dizajne
- Pregledajte i doprinesite sadržaju internet stranice i foruma
- Preuzmite 3D modele, sheme i otiske s više od milijun proizvoda
Tehnička dokumentacija
Tehnički podaci
Brand
Wurth ElektronikNumber Of Contacts
10
Number Of Rows
2
Gender
Female
Pitch
2.54mm
Mounting Type
Cable Mount
Body Orientation
Straight
Termination Method
IDC
Current Rating
1A
Contact Plating
Gold
Series
WR-BHD
Minimum Operating Temperature
-40.0°C
Maximum Operating Temperature
125.0°C
Voltage Rating
250.0 V ac
Contact Material
Copper
Housing Material
PBT
Zemlja podrijetla
Taiwan, Province Of China
Detalji o proizvodu
WR-BHD 2.54mm IDC Ribbon Cable Socket Connectors with Strain Relief
WR-BHD cable mount IDC ribbon cable receptacle connectors with a 2.54mm pitch. These wire to board IDC 2.54mm ribbon cable receptacle connectors have a black UL04-V0 PBT insulator, gold plated copper alloy female socket contacts, a polarizing key and are supplied with additional strain reliefs.
2.54mm Wurth WR-BHD Range
A range of Wurth WR-BHD Box Headers and IDC Sockets.
