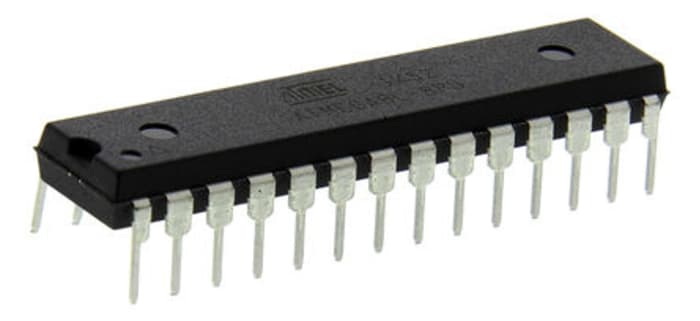

Microchip ATMEGA8L-8PU, 8bit AVR Microcontroller, ATmega, 8MHz, 8 kB, 512 B Flash, 28-Pin PDIP
Tehnička dokumentacija
Tehnički podaci
Brand
MicrochipFamily Name
ATmega
Package Type
PDIP
Mounting Type
Through Hole
Pin Count
28
Device Core
AVR
Data Bus Width
8bit
Program Memory Size
8 kB, 512 B
Maximum Frequency
8MHz
RAM Size
1 kB
USB Channels
0
Number of PWM Units
2
Number of SPI Channels
1
Number of CAN Channels
0
Number of I2C Channels
1
Typical Operating Supply Voltage
2.7 to 5.5 V
Number of USART Channels
1
Number of UART Channels
0
Instruction Set Architecture
RISC
Number of ADC Units
1
Maximum Operating Temperature
+85 °C
Length
34.8mm
Number of Ethernet Channels
0
Number of PCI Channels
0
Minimum Operating Temperature
-40 °C
Height
4.064mm
Number of LIN Channels
0
Dimensions
34.798 x 7.493 x 4.064mm
Program Memory Type
Flash
ADCs
6 x 10 bit
Width
7.493mm
Pulse Width Modulation
3 x 16 bit, 3 x 8 bit
