Block 390VA Enclosed Autotransformer, 115 V ac, 230 V ac Primary, 115 V ac, 220 V ac, 230 V ac, 240 V ac Secondary
Tehnička dokumentacija
Tehnički podaci
Proizvođač
BlockPrimary Voltage Rating
115 V ac, 230 V ac
Secondary Voltage Rating
115 V ac, 220 V ac, 230 V ac, 240 V ac
Power Rating
390VA
Construction
Enclosed
Mounting Type
Panel Mount
Termination Type
Screw
Length
166mm
Width
77mm
Dimensions
166 x 77 x 76mm
Depth
76mm
Minimum Operating Frequency
50Hz
Minimum Temperature
-20°C
Maximum Operating Frequency
60Hz
Maximum Temperature
+40°C
Standards Met
CE
Secondary Current Rating
0.8 A, 1.6 A
Zemlja podrijetla
Germany
Detalji o proizvodu

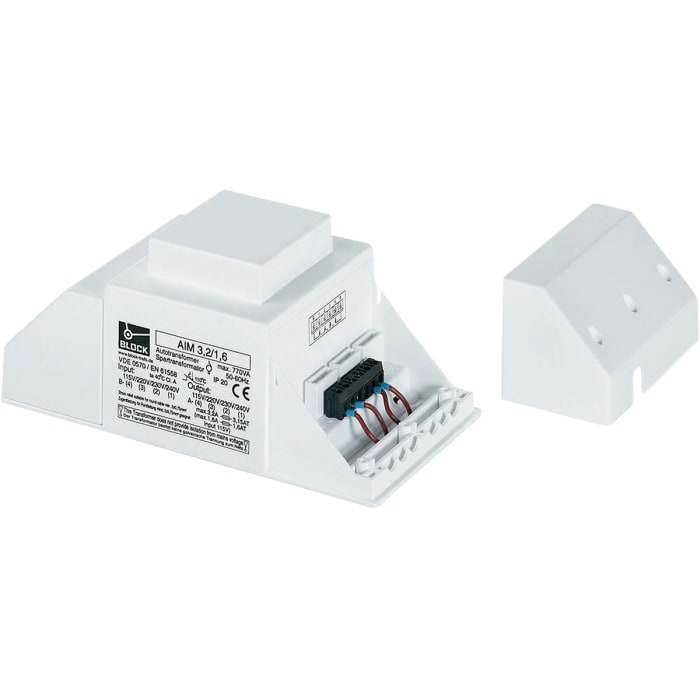

Encapsulated Step-Up/Step-Down AIM series
From Block, these short circuit proof encapsulated autowound transformers allow step up or step down of mains voltage at 50/60 Hz. Featuring easy to install mounting holes, screw terminal connections with strain relief for connecting leads, a robust and reliable set-up is assured.
Warning
These units do NOT provide isolation from the mains.
€ 122,76
€ 122,76 komadno (bez PDV-a)
€ 153,45
€ 153,45 komadno (s PDV-om)
1
€ 122,76
€ 122,76 komadno (bez PDV-a)
€ 153,45
€ 153,45 komadno (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
1
Informacije o stanju skladišta trenutno nisu dostupne.
| količina | jedinična cijena |
|---|---|
| 1 - 24 | € 122,76 |
| 25+ | € 116,30 |
