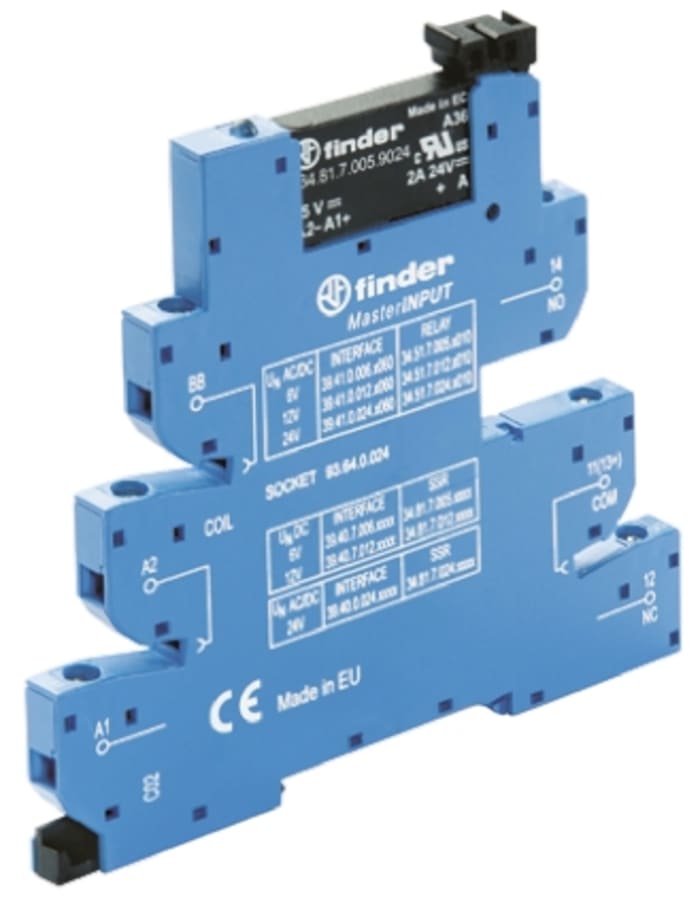

Finder Series 39 Series Solid State Interface Relay, 6.6 V Control, 2 A Load, DIN Rail Mount
Tehnička dokumentacija
Tehnički podaci
Proizvođač
FinderMaximum Control Voltage
6.6 V
Maximum Load Current
2 A
Mounting Type
DIN Rail
Maximum Load Voltage
24 V dc
Minimum Control Voltage
4.8 V
Control Voltage Range
4.8 → 6.6 V
Switching Type
DC
Contact Configuration
SPST
Load Voltage Range
1.5 → 24V dc
Minimum Load Voltage
1.5 V dc
Terminal Type
Push In
Series
Series 39
Output Device
PLC
Minimum Load Current
1 mA
Off State Leakage Current
0.001 mA
Maximum Turn On Time
0.2 ms
Operating Temperature Range
-20 → +55°C
Manufacturer Part No.
39.70.7.006.9024
Zemlja podrijetla
Italy
Detalji o proizvodu
39 Series - SSR Screw Terminals
A range of solid state relay interface modules from the 39 series from Finder, these relays are silent with high speed switching and long electrical life.
€ 70,03
€ 70,03 komadno (bez PDV-a)
€ 87,54
€ 87,54 komadno (s PDV-om)
1
€ 70,03
€ 70,03 komadno (bez PDV-a)
€ 87,54
€ 87,54 komadno (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
1
Informacije o stanju skladišta trenutno nisu dostupne.
| količina | jedinična cijena |
|---|---|
| 1 - 4 | € 70,03 |
| 5 - 9 | € 68,82 |
| 10+ | € 68,71 |
