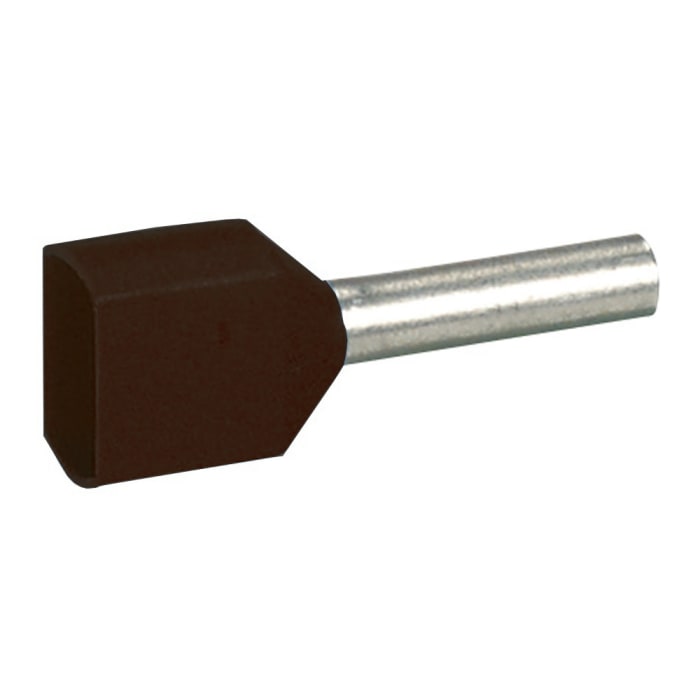

JST, TWE Insulated Crimp Bootlace Ferrule, 8mm Pin Length, 2.3mm Pin Diameter, 2 x 1.5mm² Wire Size, Black
Tehnička dokumentacija
Tehnički podaci
Proizvođač
JSTMaximum Wire Size mm²
2 x 1.5mm²
Pin Diameter
2.3mm
Insulation Material
PP
Number of Entries
2
Boja
Black
Pin Length
8mm
Insulation
Insulated
Maximum Wire Size AWG
2 x 16AWG
Overall Length
16mm
Series
TWE
Detalji o proizvodu
JST Twin Entry Insulated Bootlace Ferrule Crimp Terminals
A range of industrial standard insulated bootlace ferrule crimp terminals with a twin cable entry. These insulated bootlace ferrule crimp terminals are made from oxygen free copper which is both robust and highly conductive with excellent mechanical and electrical characteristics. The terminals are then electroplated with tin and treated by a special process developed by JST. This method ensures that there is maximum adhesion of the electroplating, reduces electrical resistance and increases resistance to corrosion. The insulation of these bootlace crimp ferrules is made from polypropylene with excellent flame resistance and insulation properties. These insulated bootlace crimp ferrules are available in various wire sizes.
JST Bootlace Ferrules
€ 10,00
€ 0,10 komadno (u vrećici od 100) (bez PDV-a)
€ 12,50
€ 0,125 komadno (u vrećici od 100) (s PDV-om)
100
€ 10,00
€ 0,10 komadno (u vrećici od 100) (bez PDV-a)
€ 12,50
€ 0,125 komadno (u vrećici od 100) (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
100
Informacije o stanju skladišta trenutno nisu dostupne.
