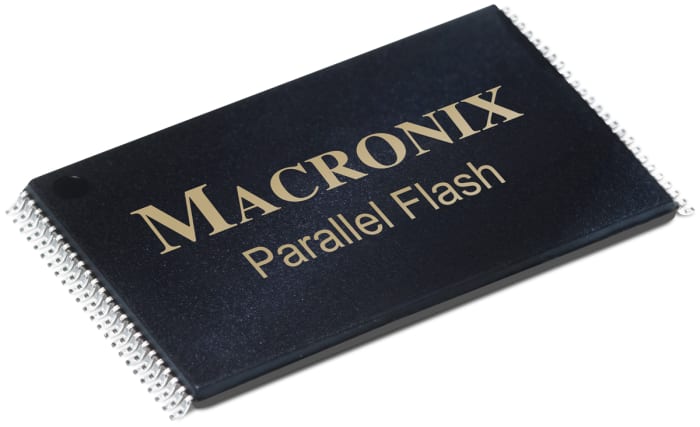

Macronix NOR 8Mbit Parallel Flash Memory 48-Pin TSOP, MX29F800CBTI-70G
Tehnička dokumentacija
Tehnički podaci
Proizvođač
MacronixMemory Size
8Mbit
Interface Type
Parallel
Package Type
TSOP
Pin Count
48
Organisation
1M x 8 bit, 512K x 16 bit
Mounting Type
Surface Mount
Cell Type
NOR
Minimum Operating Supply Voltage
4.5 V
Maximum Operating Supply Voltage
5.5 V
Block Organisation
Asymmetrical
Length
12.1mm
Height
1.05mm
Width
18.5mm
Dimensions
18.5 x 12.1 x 1.05mm
Series
MX29F
Number of Words
1M, 512k
Minimum Operating Temperature
-40 °C
Number of Bits per Word
8 bit, 16 bit
Maximum Operating Temperature
+85 °C
Maximum Random Access Time
70ns
Zemlja podrijetla
Taiwan, Province Of China
Detalji o proizvodu
Parallel NOR Flash Memory
Macronix offers an extensive line of 3 V and 5 V industry-standard Parallel NOR Flash memory products from 2 Mbit densities. These products feature Boot and Uniform Sector architectures in x8, x16, and x8/x16 selectable configurations. In the product line of 3 V, the MX29LV series offers standard read access, and the MX29GL & MX68GL series offers page mode access.
Flash Memory, Macronix
Zamisliti. Stvoriti. Surađivati
PRIDRUŽITE SE BESPLATNO
Bez skrivenih naknada!
- Preuzmite i koristite naš softver DesignSpark za svoje PCB i 3D mehaničke dizajne
- Pregledajte i doprinesite sadržaju internet stranice i foruma
- Preuzmite 3D modele, sheme i otiske s više od milijun proizvoda
€ 16,22
€ 8,11 komadno (u pakiranju od 2) (bez PDV-a)
€ 20,28
€ 10,138 komadno (u pakiranju od 2) (s PDV-om)
Standard
2
€ 16,22
€ 8,11 komadno (u pakiranju od 2) (bez PDV-a)
€ 20,28
€ 10,138 komadno (u pakiranju od 2) (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
Standard
2
Informacije o stanju skladišta trenutno nisu dostupne.
