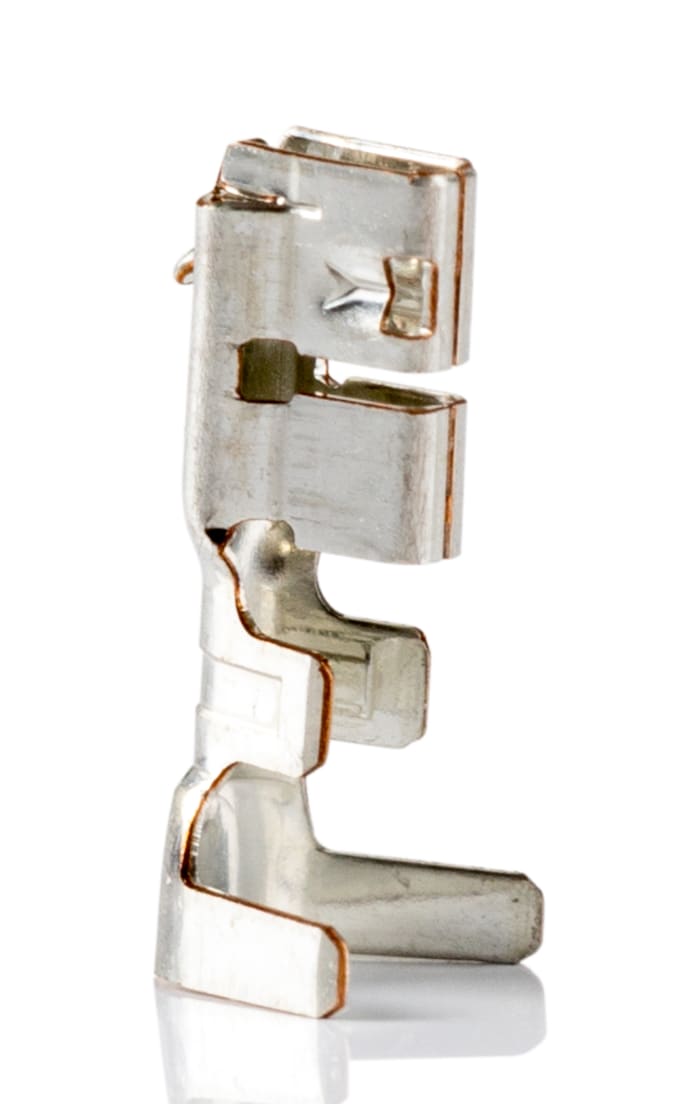

Molex MicroClasp Series Female Crimp Terminal, 26AWG Min, 22AWG Max
Tehnička dokumentacija
Tehnički podaci
Proizvođač
MolexGender
Female
For Use With
MicroClasp Connector Housing
Series
MICROCLASP
Minimum Wire Size mm²
0.1mm²
Termination Method
Crimp
Maximum Wire Size mm²
0.3mm²
Minimum Wire Size AWG
26AWG
Contact Plating
Tin
Maximum Wire Size AWG
22AWG
Contact Material
Copper Alloy
Series Number
56134
Maximum Contact Resistance
20mΩ
Minimum Operating Temperature
-25°C
Maximum Operating Temperature
+85°C
Zemlja podrijetla
Japan
Detalji o proizvodu
MicroClasp Terminals, 56134 Series
A range of Molex Series 56134 MicroClasp Terminal Contacts for use in Series 51353 Housings see stock number 406-451 typical.
For Extraction Tool See stock number 699-8142 .
2.0mm Wire to Board - Molex MicroClasp™ Range
MicroClasp™ 2.00mm pitch Wire to Board system provides space savings and easy mating/unmating compared to similar 2.00mm and 2.50mm pitch Wire to Board systems. MicroClasp™ includes a unique inner positive lock that provides latch protection, secure retention and an audible mating click. The terminal design of the MicroClasp™ series offers low insertion and withdrawal forces and is able to carry 3.0 A current in a compact 2.00mm pitch design.
Zamisliti. Stvoriti. Surađivati
PRIDRUŽITE SE BESPLATNO
Bez skrivenih naknada!
- Preuzmite i koristite naš softver DesignSpark za svoje PCB i 3D mehaničke dizajne
- Pregledajte i doprinesite sadržaju internet stranice i foruma
- Preuzmite 3D modele, sheme i otiske s više od milijun proizvoda
€ 13,00
€ 0,13 komadno (u pakiranju od 100) (bez PDV-a)
€ 16,25
€ 0,162 komadno (u pakiranju od 100) (s PDV-om)
Standard
100
€ 13,00
€ 0,13 komadno (u pakiranju od 100) (bez PDV-a)
€ 16,25
€ 0,162 komadno (u pakiranju od 100) (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
Standard
100
Informacije o stanju skladišta trenutno nisu dostupne.
| količina | jedinična cijena | Po pakiranje |
|---|---|---|
| 100 - 900 | € 0,13 | € 13,00 |
| 1000+ | € 0,12 | € 12,00 |
