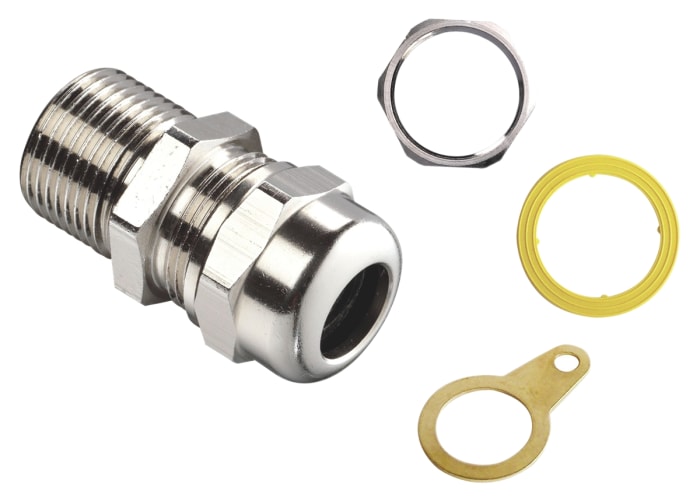

Stainless Steel Cable Gland Kit, M25 Thread, 13.5mm min., 20mm max., IP66, IP68
Tehnička dokumentacija
Tehnički podaci
Proizvođač
PeppersThread Size
M25
Maximum Cable Diameter
20mm
Minimum Cable Diameter
13.5mm
Material
Stainless Steel
IP Rating
IP66, IP68
Locknut Included
Yes
Hazardous Area Certification
ATEX
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Number of Cores
1
Kit Includes
Earth Tag, Lock Nuts, O-Ring, Shroud
Operating Temperature Range
-20 → +85 °C
Zemlja podrijetla
United Kingdom
Detalji o proizvodu
IP68 Metric Stainless Steel A2LF Gland
The IP68 metric stainless steel gland provides a controlled pull resistant environmental displacement seal on cables outer sheaths. This minimises damage to cold flow characteristic cables. The glands maintain IP66 and IP68 up to 25 m. They are also deluge proof without using any additional seals or deluge boots.
Supplied with
Locknut, earth tag, integral O ring seal and black PCP shroud.
Single-digit 7-segment Blue LED Displays
Single-digit 7-segment Blue LED displays from Broadcom (Avago Technologies).
€ 148,61
€ 148,61 1 kompleta (bez PDV-a)
€ 185,76
€ 185,76 1 kompleta (s PDV-om)
1
€ 148,61
€ 148,61 1 kompleta (bez PDV-a)
€ 185,76
€ 185,76 1 kompleta (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
1
Informacije o stanju skladišta trenutno nisu dostupne.
| količina | jedinična cijena |
|---|---|
| 1 - 4 | € 148,61 |
| 5 - 9 | € 141,73 |
| 10+ | € 138,26 |
Tehnička dokumentacija
Tehnički podaci
Proizvođač
PeppersThread Size
M25
Maximum Cable Diameter
20mm
Minimum Cable Diameter
13.5mm
Material
Stainless Steel
IP Rating
IP66, IP68
Locknut Included
Yes
Hazardous Area Certification
ATEX
Minimum Operating Temperature
-20°C
Maximum Operating Temperature
+85°C
Number of Cores
1
Kit Includes
Earth Tag, Lock Nuts, O-Ring, Shroud
Operating Temperature Range
-20 → +85 °C
Zemlja podrijetla
United Kingdom
Detalji o proizvodu
IP68 Metric Stainless Steel A2LF Gland
The IP68 metric stainless steel gland provides a controlled pull resistant environmental displacement seal on cables outer sheaths. This minimises damage to cold flow characteristic cables. The glands maintain IP66 and IP68 up to 25 m. They are also deluge proof without using any additional seals or deluge boots.
Supplied with
Locknut, earth tag, integral O ring seal and black PCP shroud.
