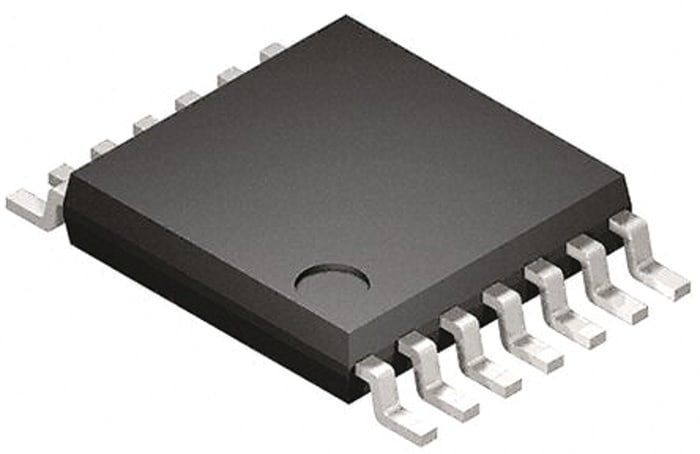

Texas Instruments SN74LVTH126PW Quad-Channel Buffer & Line Driver, 3-State, 14-Pin TSSOP
Tehnička dokumentacija
Tehnički podaci
Proizvođač
Texas InstrumentsLogic Family
LVT
Logic Function
Buffer, Line Driver
Number of Channels per Chip
4
Input Type
Single Ended
Output Type
3 State
Polarity
Non-Inverting
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
14
Maximum High Level Output Current
-32mA
Maximum Low Level Output Current
64mA
Maximum Propagation Delay Time @ Maximum CL
2.4 ns @ 3.3 V
Dimensions
5 x 4.4 x 1.15mm
Maximum Operating Supply Voltage
3.6 V
Minimum Operating Supply Voltage
2.7 V
Propagation Delay Test Condition
50pF
Detalji o proizvodu
74LVTH Family, Texas Instruments
74LVTH Family
Cijena na upit
komadno (u cijevi od 90) (bez PDV-a)
90
Cijena na upit
komadno (u cijevi od 90) (bez PDV-a)
Informacije o stanju skladišta trenutno nisu dostupne.
90
Informacije o stanju skladišta trenutno nisu dostupne.
