Calex PC21MT-3 Type J Thermocouple Infrared Temperature Sensor 1 m, 0 °C to 250 °C
Tehnička dokumentacija
Tehnički podaci
Proizvođač
CalexProduct Type
Infrared Temperature Sensor
Sensor Type
Type J Thermocouple
Maximum Ambient Temperature
70°C
Accuracy
±1 %
Minimum Temperature Sensed
0°C
Maximum Temperature Sensed
250°C
Light Source
Infrared

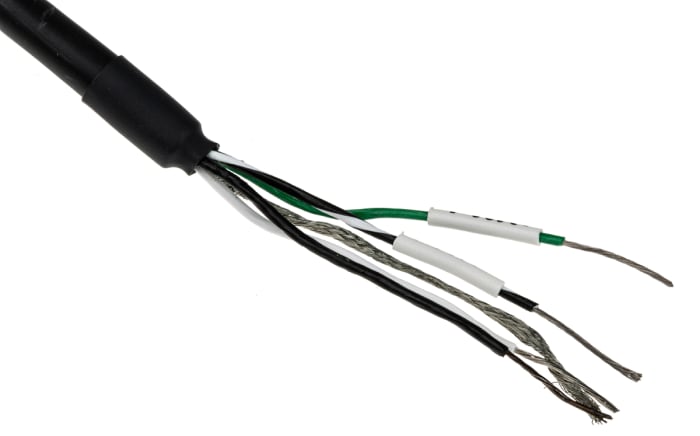

Terminal Type
Cable
Diameter
18 mm
Maximum Supply Voltage
28V
Spectral Range
8 to 14 μm
Cable Length Sensing Head
1m
Cable Length Output
1m
Housing Material Sensing Head
316 Stainless Steel
Analogue Output Type
Type J Thermocouple
Response Time 90%
240ms
Emissivity Setting
Fixed at 0.95
IP Rating Sensing Head
IP65
Standards/Approvals
Conforms to industrial EMC Standards
Series
PC
Zemlja podrijetla
United Kingdom
Detalji o proizvodu
High Performance PyroCouple Series
High quality, low cost, non-contact Infra-red temperature sensors suitable for measuring the temperature of inaccessible or moving objects and materials.
