Tehnička dokumentacija
Tehnički podaci
Brand
SamtecNumber of Contacts
30
Product Type
PCB Socket
Sub Type
Micro Blade and Beam Socket
Number of Rows
2
Pitch
0.5mm
Current
1.6A
Termination Type
Solder
Housing Material
Liquid Crystal Polymer
Mount Type
Surface
Orientation
Straight
Stacking Height
4mm
Connector System
Board-to-Board
Series
SS5
Minimum Operating Temperature
-55°C
Row Pitch
1.41mm
Contact Gender
Female
Maximum Operating Temperature
125°C
Contact Material
Phosphor Bronze
Contact Plating
Gold
Standards/Approvals
No
Detalji o proizvodu

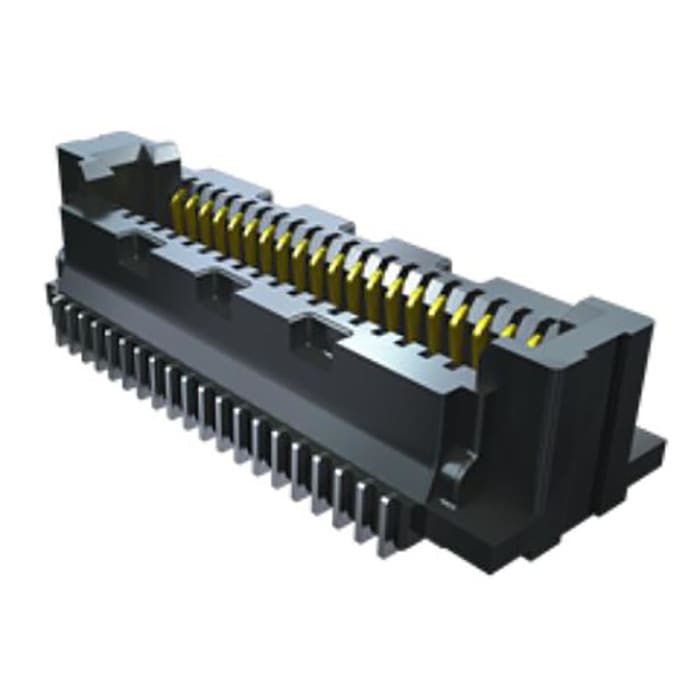

The Samtec 0.50 mm micro blade & beam low-profile socket is designed for board-to-board connection where space is at a premium. The SS5 provides up to 56 Gbps PAM4 performance and has 30 position which has 1.6 A of current per pin.
Zamisliti. Stvoriti. Surađivati
PRIDRUŽITE SE BESPLATNO
Bez skrivenih naknada!
Informacije o stanju skladišta trenutno nisu dostupne.
KM 8.988,67
KM 7,338 Each (On a Reel of 1225) (bez PDV-a)
KM 10.516,74
KM 8,585 Each (On a Reel of 1225) (s PDV-om)
1225
KM 8.988,67
KM 7,338 Each (On a Reel of 1225) (bez PDV-a)
KM 10.516,74
KM 8,585 Each (On a Reel of 1225) (s PDV-om)
Informacije o stanju skladišta trenutno nisu dostupne.
1225
| količina | Jedinična cijena | Po kolut |
|---|---|---|
| 1225 - 4900 | KM 7,338 | KM 8.988,67 |
| 6125+ | KM 7,226 | KM 8.851,65 |
